The continuous automatic packers are characterized by their excellent price/quality ratios and modularity. All models in this range are full electric, without compressed air requirement. Compared to traditional L-sealers, this range offers several advantages such as: packaging products with unlimited length, increase the production capacity, a significant reduction of film waste. The HS series with continuous sealing and intermittent or box motion cycle can handle Polyolefin and Polyethylene, Polypropylene centerfolded or flat film with film folder PX, and is suited to meet outputs of up to 7200 packs/hour.
Unit of Measure

Specifications

Brands

 N/A Smipack

Maximum Pack Height

 N/A 13.77 in

Film Material

 N/A Polyethylene Polyolefin Polypropylene

Installed Power

 N/A 3850 W

Number of Belts

 N/A 3
Continuous Packer Control1 N/A Automatic

Cross Sealing Bar Length

 N/A 32.28 in

Sealing Blade Coating Material

 N/A PTFE

Speed of Conveyors

 N/A 36.09 to 147.64 ft/min

Machine Net Weight

 N/A 2458 lb

Industry Standards/Certifications

 N/A European Conformity (CE) Regulations

Polyolefin Film Thickness

 N/A 35 to 120 gauge

Polypropylene Film Thickness

 N/A 80 to 160 gauge
Polyethylene Film Thickness2 N/A 60 to 350 gauge

Features

Features

 N/A
  • Intermittent working cycle
  • Motorized cross sealing bar controlled by inverter and encoder equipped with PTFE-coated sealing blade
  • Side sealing system by friction with hot blade
  • Motorized center seal system
  • FLXMOD® control system equipped with:
    • 7 inch full-Color Touch screen display with PLC user-friendly
    • Power and control section consisting of:
      • Inverter for all motors
      • Command modules with 16 digital inputs/outputs
      • Analog inputs control modules
      • Thermocouple-reading control modules
    • Possibility of scheduling up to 50 different work cycles
  • Possibility of remote control
  • Reduced power consumption

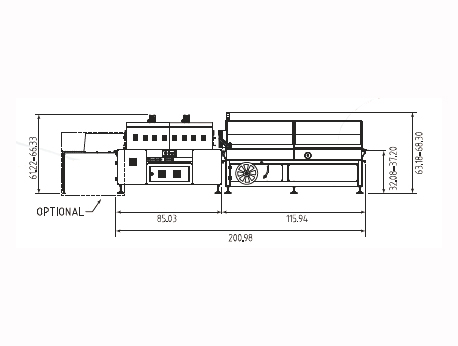

Machine Dimensions

Machine Length

 N/A 120.86 in

Machine Width

 N/A 95.47 in

Machine Height

 N/A 63.18 to 69.48 in

Production Capacity Output

Production Capacity Output

 N/A Up to 3900 packs/hour

Note for Production Capacity Output

 N/A The stated speed can change according to the product size, the pack collation and the type of film used.

Power Supply

Power Supply Frequency

 N/A 50/60 Hz

Power Supply Voltage

 N/A 220/240 V380/415 V

Electrical Terminals for 380/415 Volt (V) Power Supply

 N/A 3PH+N+PE

Electrical Terminals for 220/240 Volt (V) Power Supply

 N/A 3PH+PE

Film Reel Dimensions

Maximum Film Reel Size

 N/A 37.40 in

Maximum Film Reel Diameter

 N/A 13.78 in
  • 1 Intermittent Cycle
  • 2 Polyethylene from 60 to 320 ga with optional crossbar for polyetylene
