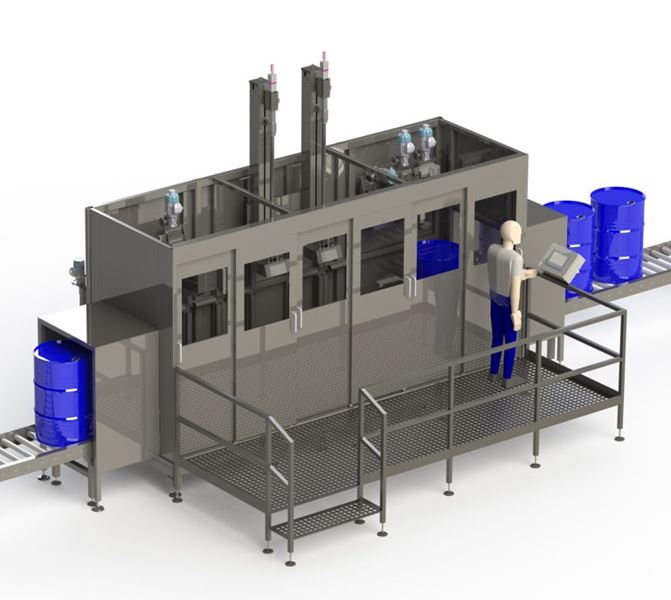

The automatic drum filling machine EL2-B is indicated for filling liquid and viscous products in metallic and plastic 120 to 250 liters drums. It is completely automatically and safely for the operator and it has an integrated automatic conveyor line. Different workstations can be added to the equipment.

With the automatic drum filling machine EL2-B, you will obtain maximum performance in production lines presenting high filling production. It can also include the automatic debunging, bunging and sealing of the drums.

Unit of Measure

N/A

Brand

 N/A AiCrov

Power Requirements

 N/A Electrical: 3×380 VAC, 50-60Hz, <12Kw

Capacity Range

 N/A 120 to 250 L

Approximate Nominal Productions

 N/A Up to 130 drums/hour

Base Height Range Of Adjustment

 N/A 550 mm servo adjustment

Weight Scale Resolution

 N/A ±50 g

Product Pump Control

 N/A 3 potential contacts for controlling an on-site pump or a pilot valve for gross/fine fill

Required Air Pressure

 N/A 5 bar

Work Temperature

 N/A -10°C a +45 °C

Product Temperature

 N/A 0°C a +130 °C

Product Connection

 N/A 1 ½ inch male camlock

Approximate Weight

 N/A 3500 kg

N/A

  • Set the final net weight value and other filling parameters through the HMI screen.
  • Place the empty drums on the infeed conveyor.

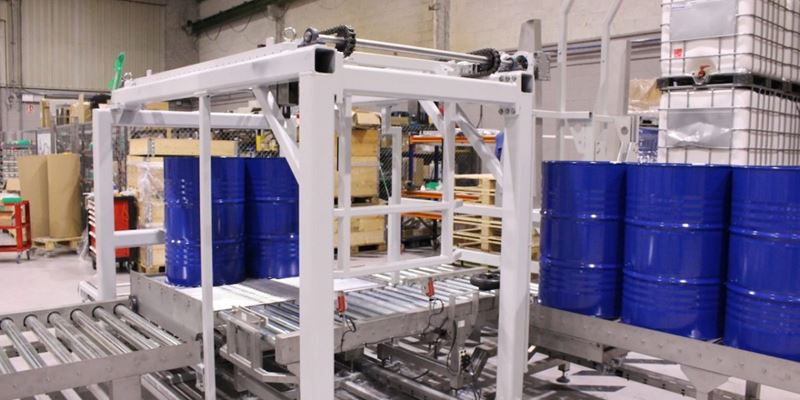

  • The containers are moved automatically to the filling station.

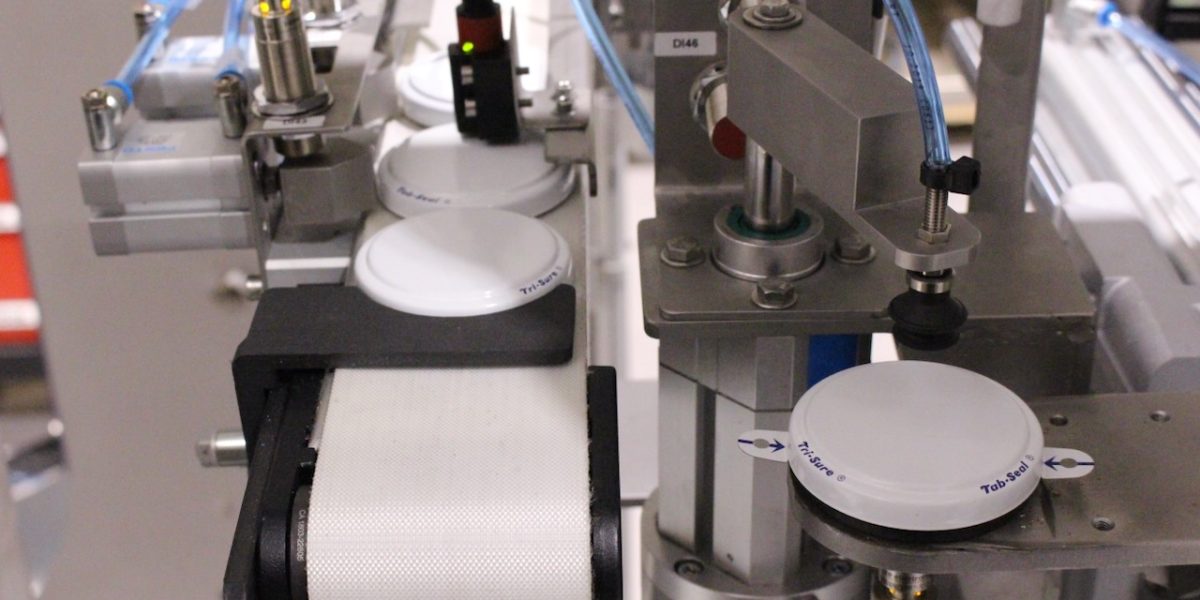

  • Filling process is fully automatic, including debunging, bunging and sealing if necessary, providing the final net weight configured in step 1 for each container.
  • Take out the filled containers from the conveying line.

N/A

  • Gashood with anti-drip system
  • Product hose support system
  • PID controller filling algorithm
  • Double filling weight scale
  • Overfill detection
  • Filling history management
  • CIP cleaning system
  • Product pump control
  • Frontal protection

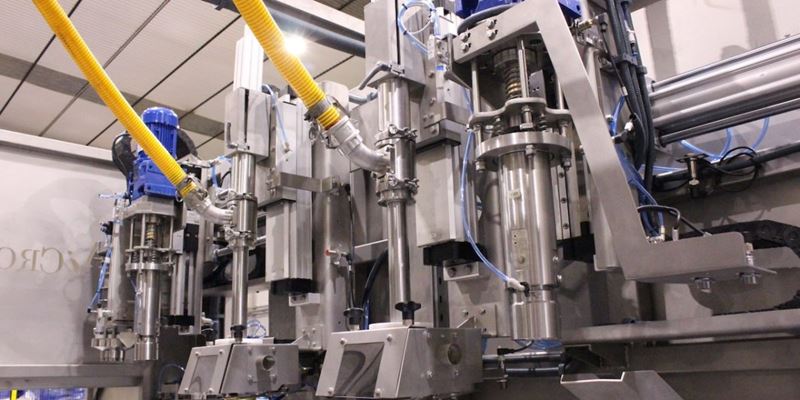

  • Dosing lances support rack
  • Dosing lance number control
  • Electrostatic discharge control
  • Flushing system
  • Connection with factory
  • Packaging recipes
  • Proportionate filling

N/A

Our liquid filling machines are designed to offer versatile and customizable filling modes, allowing you to adjust the system according to both the type of liquid product and the specific environment. Depending on your needs, our machines can operate with a range of filling methods, including:

Below surface filling mode

This filling mode is suitable for liquids that have the tendency to foam, are flammable, explosive, etc.

Under bunghole filling mode

This filling mode is suitable for filling products that are non-foaming, non-flammable, non-explosive, as well as those presenting high density or viscosity.

Over bunghole filling mode

This filling mode is suitable for filling highly viscous, non-foaming products, such as greases, paints, and other thick products. It is used for containers that lack a bunghole.
