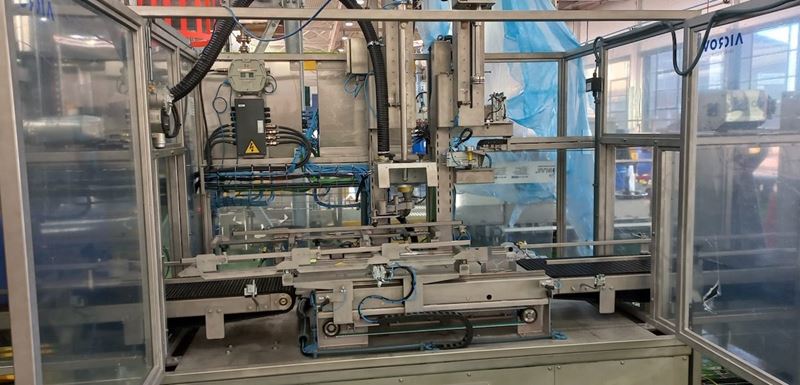

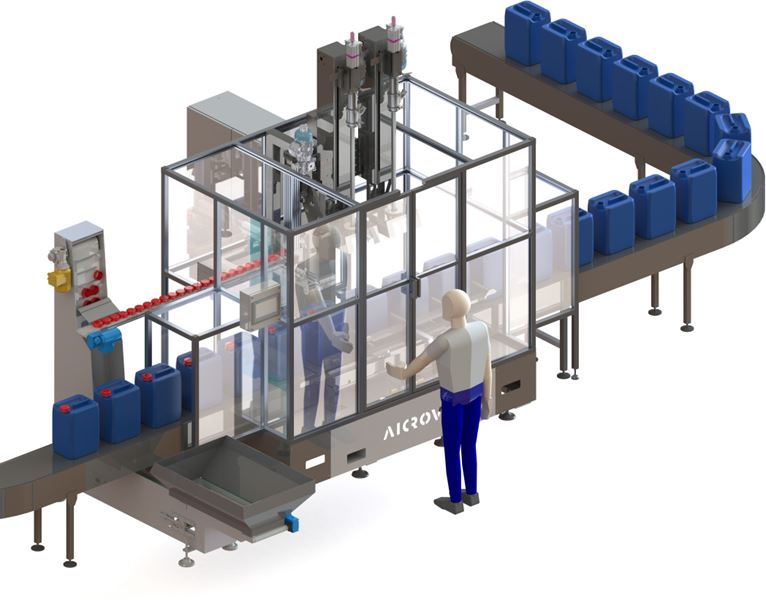

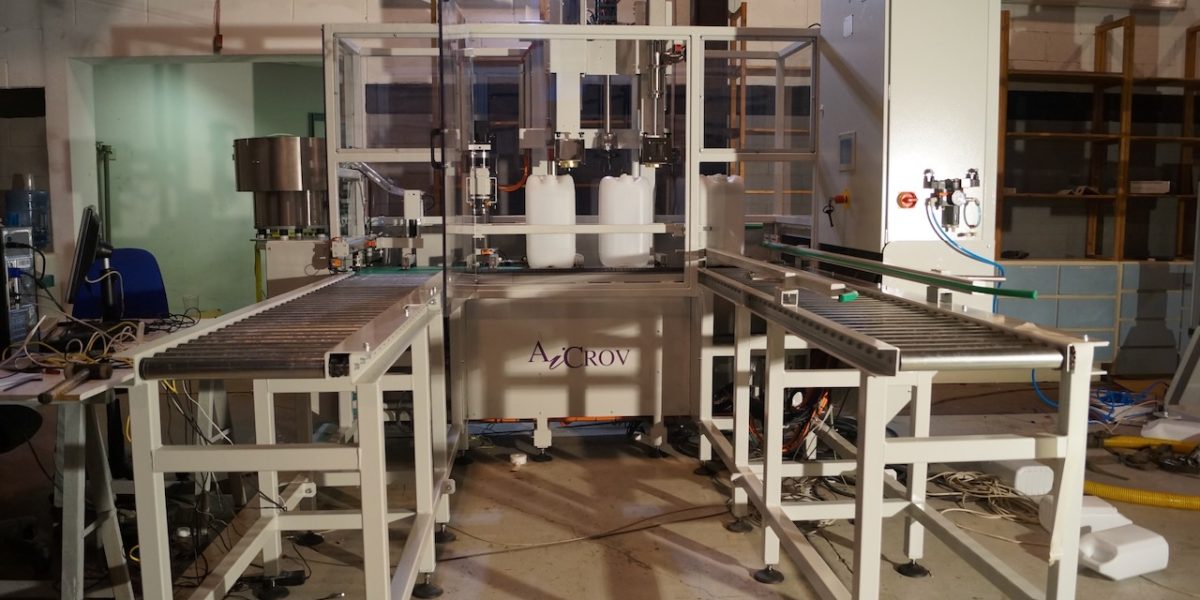

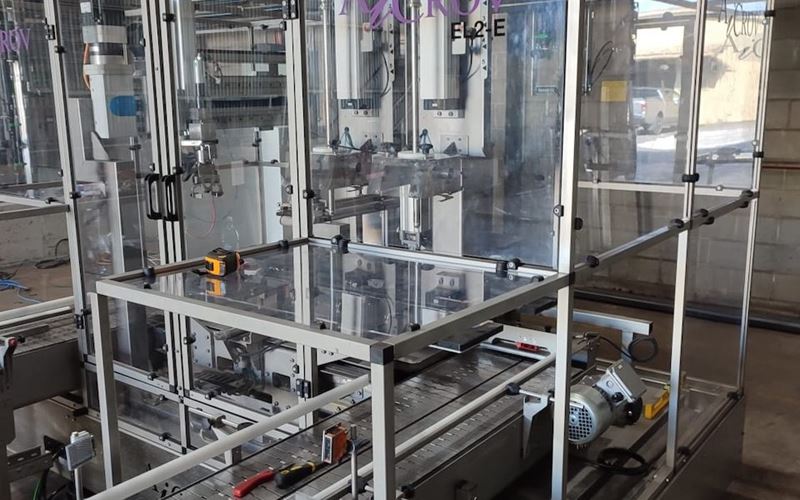

The automatic canister filling machine EL2-E is one of our advanced filling solutions for liquid or viscous products. It is indicated for the filling of 1 to 30 litres round or rectangular based metallic or plastic canisters, pails and jerrycans. It also may be equipped with multiple workstations.

The automatic canister filling machine EL2-E is designed for high filling productions featuring a high level of automation. With the automatic canister filling machine EL2-E, we guarantee maximum automation coupled with total packaging flexibility in one machine.

Unit of Measure

N/A

Brand

 N/A AiCrov

Power Requirements

 N/A Electrical: 3×380 VAC, 50-60Hz, <10Kw

Capacity Range

 N/A 1 to 30 L

Approximate Nominal Productions

 N/A Up to 900 containers/hour (25 liters)

Base Height Range Of Adjustment

 N/A 550 mm servo adjustment

Weight Scale Resolution

 N/A ±10 g

Product Pump Control

 N/A 3 potential contacts for controlling an on-site pump or a pilot valve for gross/fine fill

Required Air Pressure

 N/A 5 bar

Work Temperature

 N/A -10°C a +45 °C

Product Temperature

 N/A 0°C a +130 °C

Product Connection

 N/A 1 ½ inch male camlock

Approximate Weight

 N/A 1000 kg

N/A

  • Set the final net weight value and other filling parameters through the HMI screen.
  • Place the empty containers on the infeed conveyor.
  • The containers are moved automatically to the filling station.
  • Filling process is fully automatic, including capping and sealing if necessary, providing the final net weight configured in step 1 for each container.
  • Take out the filled containers from the conveying line.

N/A

  • Gashood with anti-drip system
  • Product hose support system
  • PID controller filling algorithm
  • Double filling weight scale
  • Overfill detection
  • Filling history management
  • CIP cleaning system
  • Product pump control
  • Frontal protection
  • Dosing lances support rack
  • Dosing lance number control
  • Electrostatic discharge control
  • Flushing system
  • Connection with factory
  • Packaging recipes
  • Proportionate filling

N/A

Our liquid filling machines are designed to offer versatile and customizable filling modes, allowing you to adjust the system according to both the type of liquid product and the specific environment. Depending on your needs, our machines can operate with a range of filling methods, including:

Below surface filling mode

This filling mode is suitable for liquids that have the tendency to foam, are flammable, explosive, etc.

Under bunghole filling mode

This filling mode is suitable for filling products that are non-foaming, non-flammable, non-explosive, as well as those presenting high density or viscosity.

Over bunghole filling mode

This filling mode is suitable for filling highly viscous, non-foaming products, such as greases, paints, and other thick products. It is used for containers that lack a bunghole.
