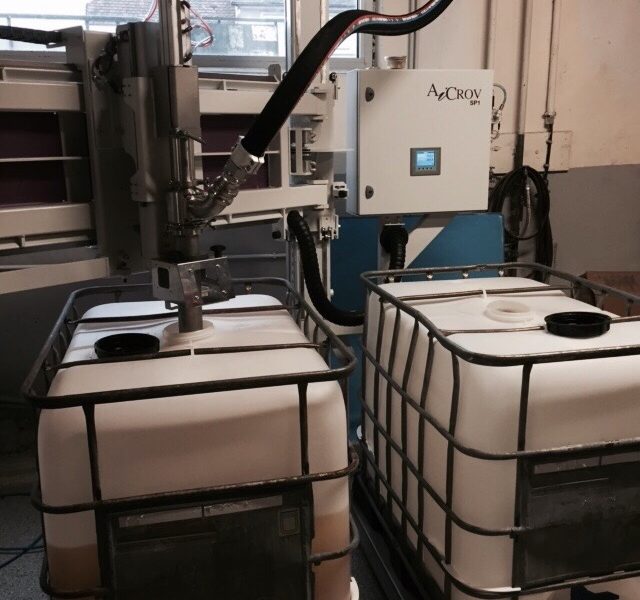

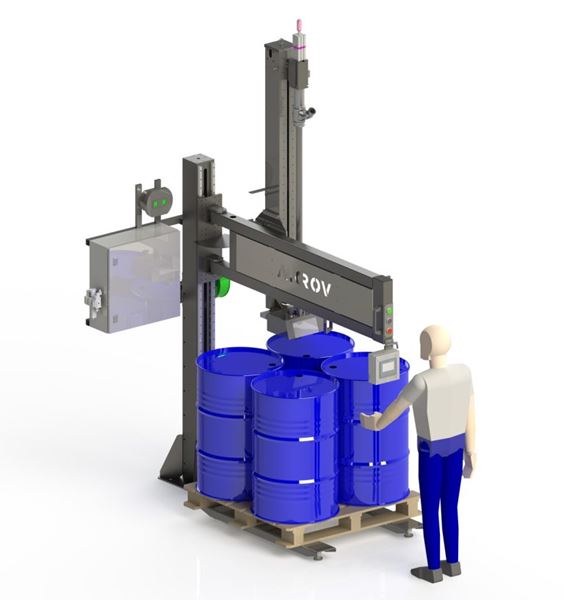

The Drum and IBC filling machine SP1 is a versatile and semiautomatic weight filling equipment. It is suitable for filling liquid and viscous products directly on pallet in a wide range of containers. In fact, this solution allows you to fill canisters, pails, totes, drums and IBCs directly on pallet.

The Drum and IBC filling machine SP1 is the perfect match for small-scale productions and frequent format or product changes. It's a flexible, cost-effective solution than can be used in a variety of applications.

Unit of Measure

N/A

Brand

 N/A AiCrov

Power Requirements

 N/A Electrical: 240V, 50-60Hz, <1Kw

Capacity Range

 N/A 10 to 1500 L

Approximate Nominal Productions

 N/A 80 Canisters/hour (20 litres) - 65 Drums/hour (220 litres) - 15 IBC/hour (1200 litres)

Base Height Range Of Adjustment

 N/A 550 mm servo adjustment

Weight Scale Resolution

 N/A ±50 g

Product Pump Control

 N/A 3 potential contacts for controlling an on-site pump or a pilot valve for gross/fine fill

Required Air Pressure

 N/A 6 bar

Work Temperature

 N/A -10°C a +45 °C

Product Temperature

 N/A 0°C a +130 °C

Product Connection

 N/A 1 ½ inch male camlock

Approximate Weight

 N/A 700 kg

N/A

Steps for the implementation of the Drum and IBC filling machine SP1:

  • Set up the filling recipe.
  • Adjust the height of the filling arm.
  • Place a pallet with empty containers.
  • Press the “release axes” button and position the dispenser on the bunghole of the container to be filled.
  • Press the “fill” button. The dispenser will go down, fill and return to its position.
  • Carry out points 4 and 5 as many times as there are containers on the pallet.
  • Remove the pallet with the full containers and place a new pallet.

N/A

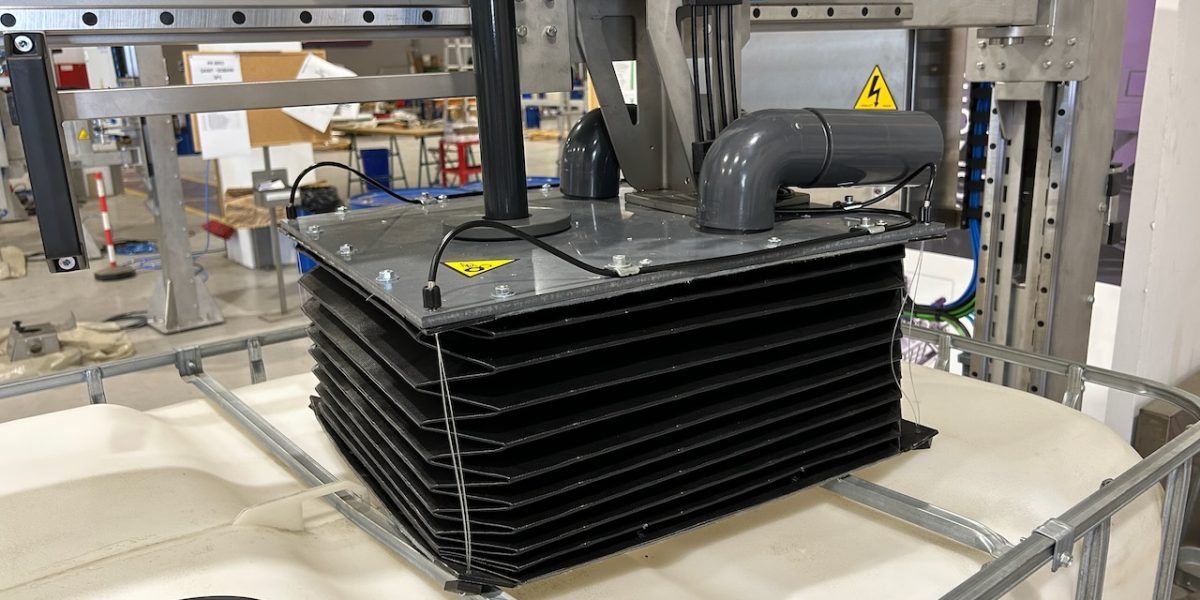

  • Gashood with anti-drip system
  • Product hose support system
  • Proportional filling lance movement
  • Double filling weight scale
  • Dosing lances support rack

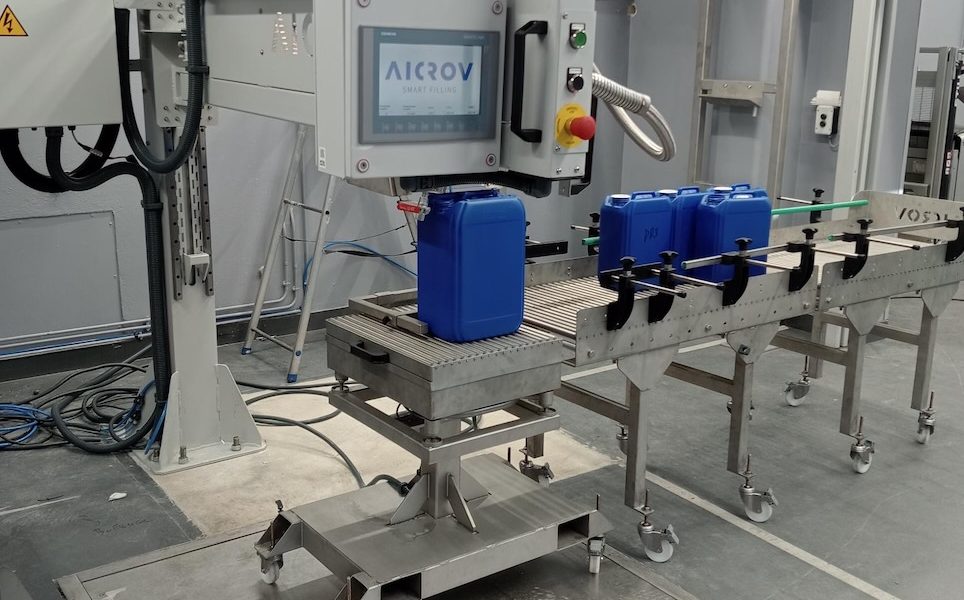

  • Additional weight scale for cans
  • Filling history management
  • CIP cleaning system
  • Product pump control
  • Frontal protection
  • Dosing lance number control
  • Electrostatic discharge control
  • Flushing system
  • Online connection with factory
  • Filling recipes storage
  • Overfill detection

N/A

Our liquid filling machines are designed to offer versatile and customizable filling modes, allowing you to adjust the system according to both the type of liquid product and the specific environment. Depending on your needs, our machines can operate with a range of filling methods, including:

Below surface filling mode

This filling mode is suitable for liquids that have the tendency to foam, are flammable, explosive, etc.

Under bunghole filling mode

This filling mode is suitable for filling products that are non-foaming, non-flammable, non-explosive, as well as those presenting high density or viscosity.

Over bunghole filling mode

This filling mode is suitable for filling highly viscous, non-foaming products, such as greases, paints, and other thick products. It is used for containers that lack a bunghole.
