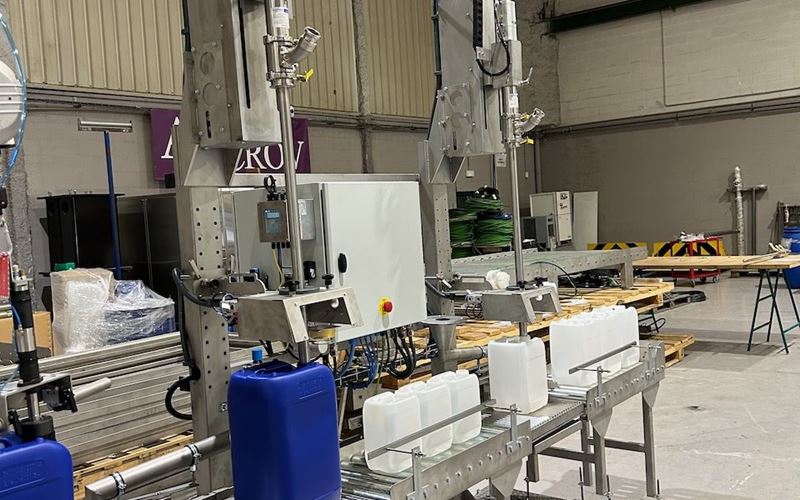

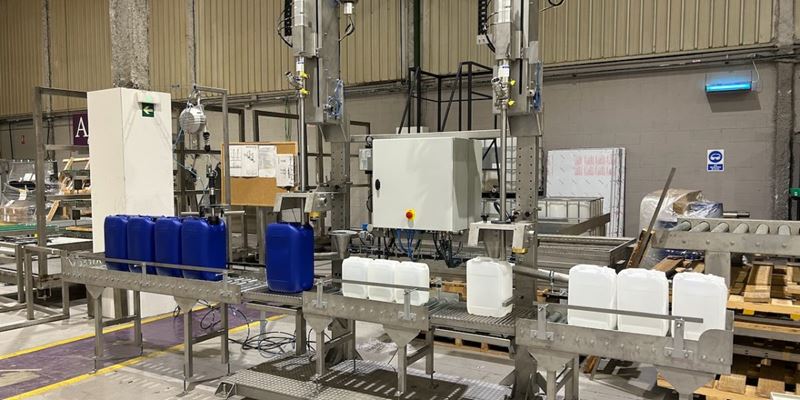

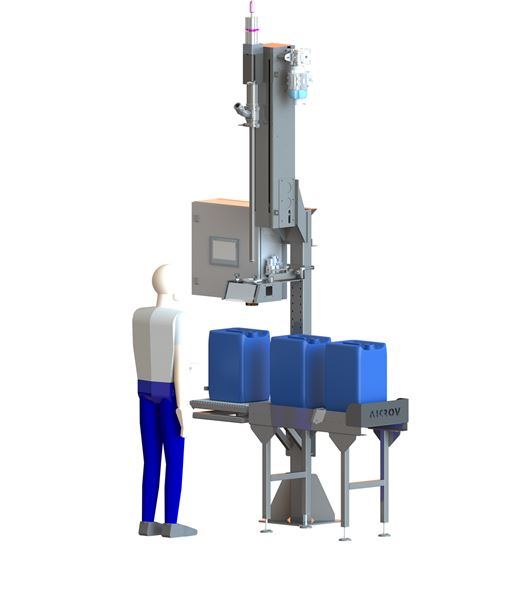

The canister filling machine LSG is a semiautomatic equipment for filling all types of liquid and viscous products. It is the best solution for jerrycans, canisters and pails from 1 to 30 litres. The filling process is completely automatic and safely for the operator.

The canister filling machine LSG stands out for its versatility, and it does not require installation so you can produce from the very start. The interface design is intended for the operator, and it’s very easy to use.

Unit of Measure

N/A

Brand

 N/A AiCrov

Power Requirements

 N/A Electrical: 240V, 50-60Hz, 0,5Kw

Capacity Range

 N/A 1 to 30 L

Approximate Nominal Productions

 N/A 150 containers/hour (25 liters)

Base Height Range Of Adjustment

 N/A 550 mm servo adjustment

Weight Scale Resolution

 N/A ±5 g

Product Pump Control

 N/A 3 potential contacts for controlling an on-site pump or a pilot valve for gross/fine fill

Required Air Pressure

 N/A 5 bar

Work Temperature

 N/A -10°C a +45 °C

Product Temperature

 N/A 0°C a +130 °C

Product Connection

 N/A 1 ½ inch male camlock

Approximate Weight

 N/A 300 kg

N/A

Steps for the implementation of the canister filling machine LSG:

  • Enter the values for the filling adjustment: net nominal value for each container in kgs, and the cutoff point where the gross fill becomes fine fill.
  • Adjust the height of the filling arm.
  • Place a pallet with empty containers and align the bunghole with the nozzle.
  • Press the “fill” button. The dispenser will go down, fill and return to its position.
  • Remove the full container and place an empty one.

N/A

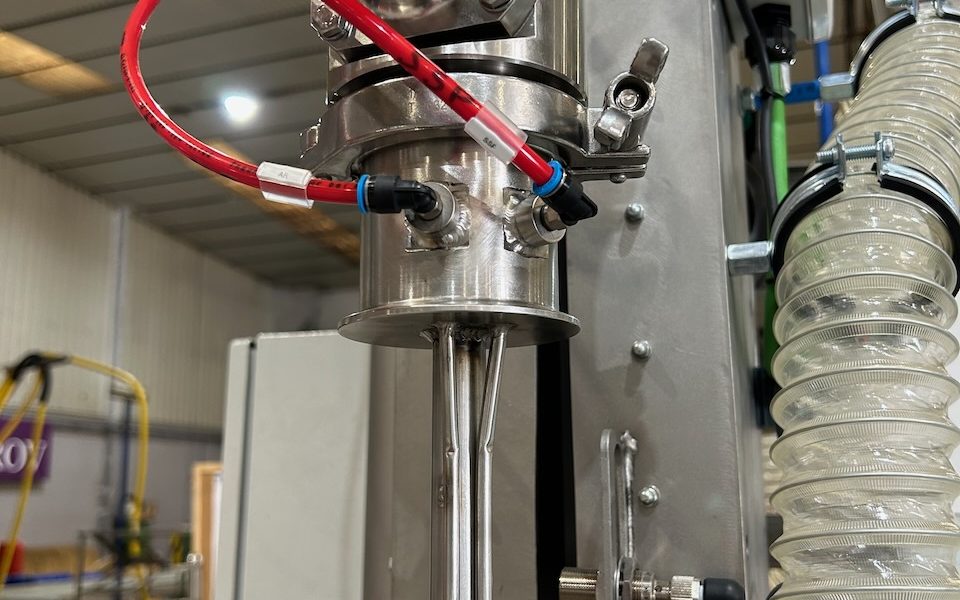

  • Gashood with anti-drip system
  • Product hose support system
  • Proportional filling lance movement
  • Double filling weight scale
  • Dosing lances support rack
  • Additional weight scale for cans
  • Filling history management
  • CIP cleaning system
  • Product pump control
  • Frontal protection
  • Dosing lance number control
  • Electrostatic discharge control
  • Flushing system
  • Online connection with factory
  • Filling recipes storage
  • Overfill detection

N/A

Our liquid filling machines are designed to offer versatile and customizable filling modes, allowing you to adjust the system according to both the type of liquid product and the specific environment. Depending on your needs, our machines can operate with a range of filling methods, including:

Below surface filling mode

This filling mode is suitable for liquids that have the tendency to foam, are flammable, explosive, etc.

Under bunghole filling mode

This filling mode is suitable for filling products that are non-foaming, non-flammable, non-explosive, as well as those presenting high density or viscosity.

Over bunghole filling mode

This filling mode is suitable for filling highly viscous, non-foaming products, such as greases, paints, and other thick products. It is used for containers that lack a bunghole.
