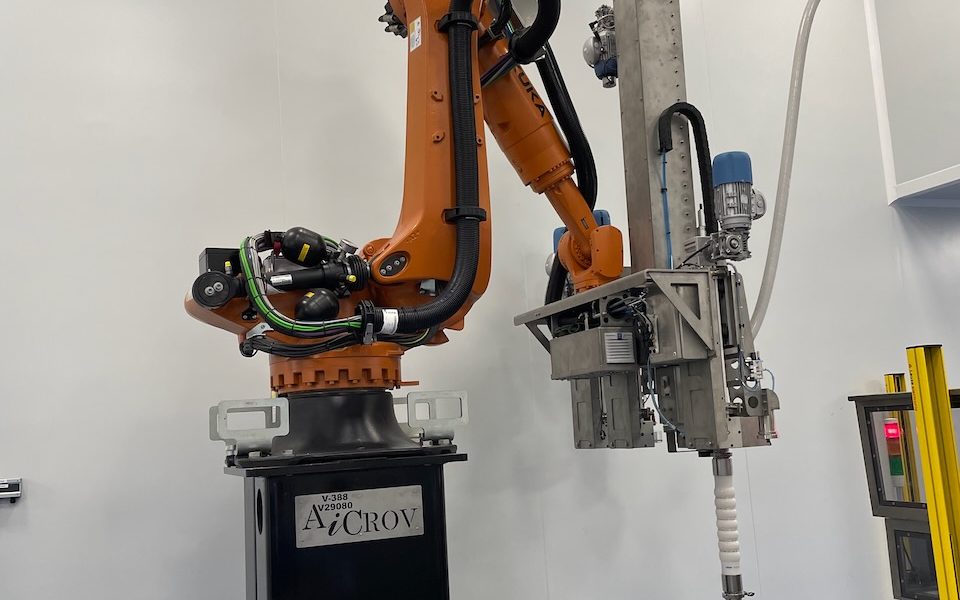

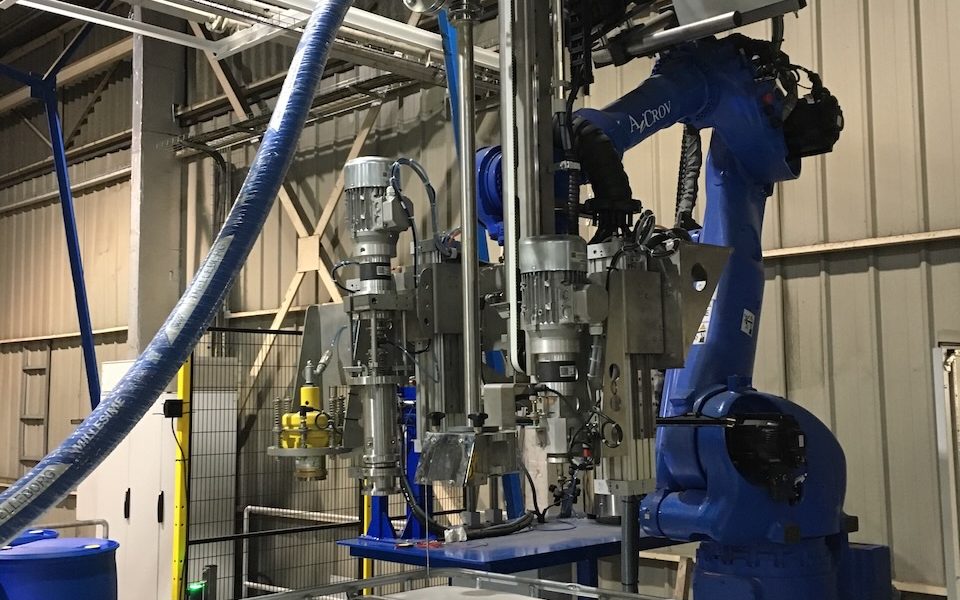

Fully automated machine for weighted and production line filling of canisters, pails, drums and IBC on pallets.

The Robot Filler model is designed for high productions featuring a high level of automation. It also allows much flexibility in changing the type of container. It is suitable for filling canisters, pails, drums and IBC directly on pallets (from 20 to 1.500 liters containers).

Unit of Measure

N/A

Brand

 N/A AiCrov

Power Requirements

 N/A Electrical: 3×380 VAC, 50-60Hz, <18Kw

Capacity Range

 N/A 120 to 250 L

Approximate Nominal Productions

 N/A Up to 120 canisters/hour (20 litres) - 65 drums/hour (220 litres) - 20 IBC/hour (1200 litres)

Base Height Range Of Adjustment

 N/A 550 mm servo adjustment

Weight Scale Resolution

 N/A ±250 g

Product Pump Control

 N/A 3 potential contacts for controlling an on-site pump or a pilot valve for gross/fine fill

Required Air Pressure

 N/A 5 bar

Work Temperature

 N/A -10°C a +45 °C

Product Temperature

 N/A 0°C a +130 °C

Product Connection

 N/A 1 ½ inch male camlock

Approximate Weight

 N/A 1400 kg

N/A

Steps for the implementation of the Robot Filler:

  • Enter filling recipe.
  • Place pallets with empty containers in the input conveyor.
  • Machine will uncap (optional), fill, cap (optional) and seal (optional) each container on the pallet.
  • Remove the pallets with full containers from the exit conveyors.

N/A

  • Gashood with anti-drip system
  • Product hose support system
  • PID controller filling algorithm
  • Double filling weight scale
  • Overfill detection
  • Filling history management
  • CIP cleaning system
  • Product pump control
  • Frontal protection
  • Dosing lances support rack
  • Dosing lance number control
  • Electrostatic discharge control
  • Flushing system
  • Connection with factory
  • Packaging recipes
  • Proportionate filling

N/A

Our liquid filling machines are designed to offer versatile and customizable filling modes, allowing you to adjust the system according to both the type of liquid product and the specific environment. Depending on your needs, our machines can operate with a range of filling methods, including:

Below surface filling mode

This filling mode is suitable for liquids that have the tendency to foam, are flammable, explosive, etc.

Under bunghole filling mode

This filling mode is suitable for filling products that are non-foaming, non-flammable, non-explosive, as well as those presenting high density or viscosity.

Over bunghole filling mode

This filling mode is suitable for filling highly viscous, non-foaming products, such as greases, paints, and other thick products. It is used for containers that lack a bunghole.
