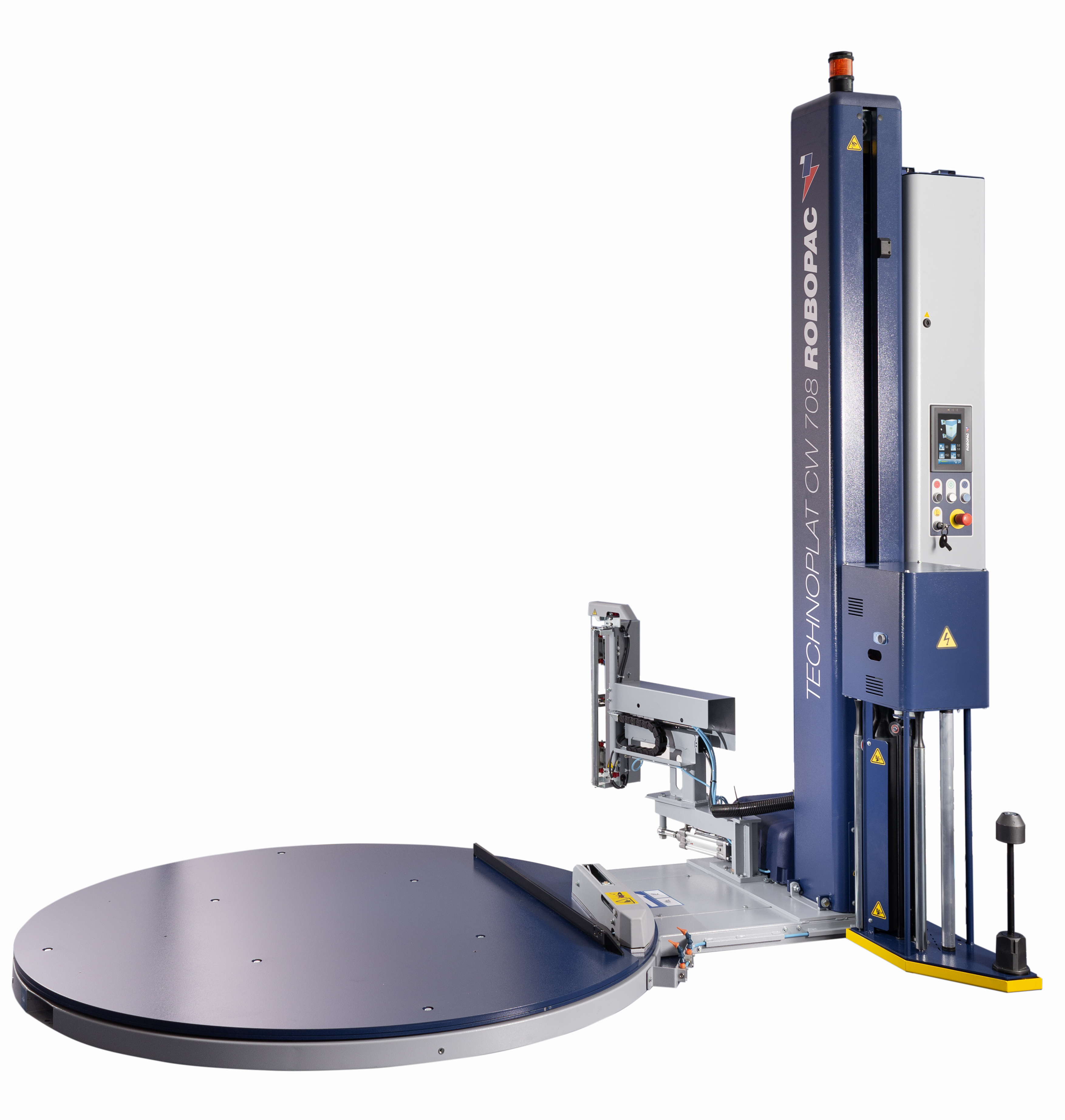

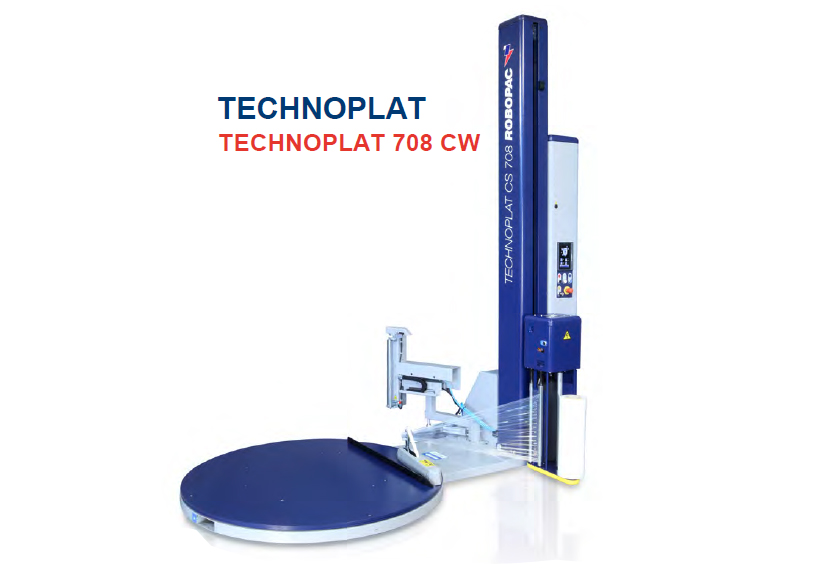

The Technoplat 708 turntable is supported by 28 heavy duty casters and can handle loads up to 4,400 lbs. Weight capacity increases to 5,500 lbs by simply adding 16 additional casters. This can be done at order entry or added later in the field.

The heavy duty 65-inch turntable is powered by a full 1 horse power AC motor and is made from 7/8" steel. The oversize turntable safely and easily accommodates a 40" x 48" with no overhang.
Unit of Measure

Specifications

Brands

 N/A Robopac®

Features

 N/A Semi-Automatic

Type

 N/A Stretch Turntable

Production Speed

 N/A Up to 40 L/h

Maximum Load Weight

 N/A 4,400 lb

Turntable Speed

 N/A 5 to 15 rpm

Alternating Current (AC) Voltage for Turntable Drive Power

 N/A 1 V

Diamond Plate Turntable Diameter

 N/A 3/8 in

Containment Force

 N/A Multi-Level Variable

Corner Compensation

 N/A Load Cell

Turntable Diameter

 N/A 65 in
Pre-Stretch1 N/A 100 to 400 %

Control Panel

 N/A Touch Screen Human-Machine Interface (HMI)

Frame Construction

 N/A Formed Steel

Film Threading

 N/A Patented S-Pattern

Height Sensing

 N/A Automatic via Photocell

Wrapping Menus

 N/A 12 Programmable Menus

Standard Wrap Height

 N/A 110 in

Safety

 N/A Anti-Fall Device and Pressure Activated Safety Stop on Carriage Canada Underwriters Laboratories (CUL) European Conformity (CE) Compliant Underwriters Laboratories (UL)

Available Options

 N/A 30 in. Film Carriage Auto Film-Cutting Device Cold Package Extended Warranty Ramp Roping Device Scale Package Top Platen Hold Down

Turntable Height

 N/A 2-7/8 in
Alternating Current (AC) Voltage for Film Carriage Motor Power2 N/A 1/2 hp

Diamond Plate Turntable Finish

 N/A Plated Steel

Utility Requirements

Phase

 N/A 1

Frequency

 N/A 60 Hz

Electric Tolerance (±)

 N/A 10 %

Alternating Current (AC) Voltage

 N/A 110 V

Maximum Load Dimensions

Maximum Load Height

 N/A 110 in

Maximum Load Width

 N/A 52 in

Maximum Load Length

 N/A 52 in

Key Features

Key Features

 N/A
  • Cube "SMART Stretch Wrapping" Technology
  • Multi-Level Variable Pre-Stretch & Containment Force
  • Icon Driven Touchscreen
  • Auto Film Clamp (Cut & Weld)
  • R-Connect Ready
  • 1 Multi-Level Variable
  • 2 Chain-Driven
