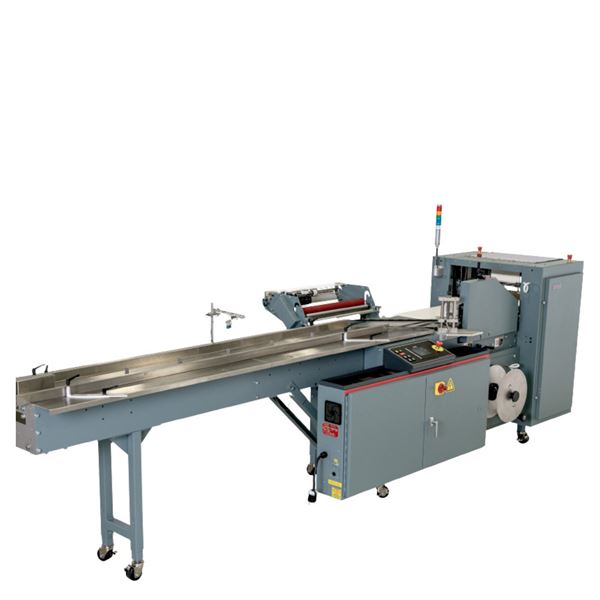

Whether products are coming in via conveyor line, hand fed, or other means such as a feeder or hopper, the F-5AC has the widest variety of infeed conveyors to handle it. The F-5AC proudly holds the same features as the F-1AC to optimize product, film, and operator management. This includes the intelligence to troubleshoot faults via corrective action and capture multiple set-up settings via HMI Recipes.

Unit of Measure

N/A

Brand

 N/A Shanklin

Compressed Air Pressure

 N/A 60 psi

Longitudinal Seal

 N/A Hot Knife (Hot Wire and Pneumatic Cool Cut Optional)

Transverse Seal

 N/A Sabre Hot Knife (Forge Hot Knife and SmartWire Optional)

Conveyor Height

 N/A Adjustable 31.5 - 37.5 without casters / 35.5 - 41.5 with casters

Power Requirements

 N/A 230V, 20 Amps, 60 Hz, 1 phase

Compressed Air Flow Rate

 N/A 1/2 C.F.M.

Maximum Product Height

 N/A 6 (8 Optional) Inch

Minimum Product Length

 N/A 3 Inch

Maximum Product Length

 N/A 48 Inch

Conveyor Belt Width

 N/A 16 Inch

Maximum Film Width - Folded

 N/A 30 Inch

Maximum Film Width - Flat

 N/A 60 Inch

Product Speed

 N/A Up to 75 packages/min

Seal Jaw Width

 N/A 19 (23 Optional) Inch

N/A AC Motors and AC Variable Frequency Drives Casters Custom Options EZ Load Compact Centerfolder Flight Bar Infeed Conveyor Flighted Infeed with Quick Release Pushers Level Bottom Jaw No Product - No Bag Feature Overhead or Side Harmonic Feed Print Registration Swing Arm HMI

N/A

  • Emergency stop button instantly stops all machine functions until manually reset
  • All safety components, such as E-Stops and door interlocks, are managed via a dual-channel monitored safety circuit
  • Tamper-resistant controls
  • Low voltage sensors and actuators
  • Film clamp proximity sensors ensure safe sealing arm jaw closure
  • UL Certified electrical chassis
