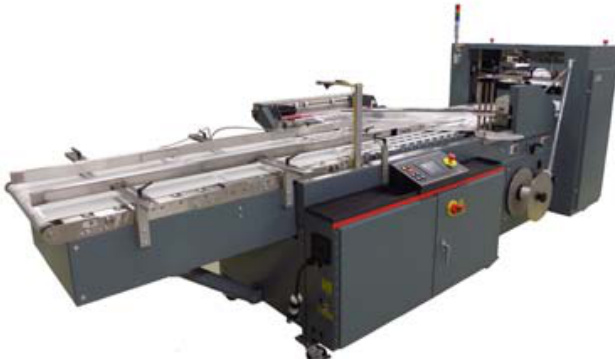

Notably larger than the F-1AC, the F-7AC has all the same features and benefits only on a much grander scale. Outfitted with a 33” wide seal bar, package height and widths can get much larger and still be wrapped with the efficiency operators come to expect from the FAC family of equipment.
Brand |
N/A Shanklin |
Compressed Air Pressure |
N/A 60 psi |
Longitudinal Seal |
N/A Hot Knife (Hot Wire and Pneumatic Cool Cut Optional) |
Transverse Seal |
N/A Sabre Hot Knife (Forge Hot Knife and SmartWire Optional) |
Conveyor Height |
N/A Adjustable 31.5 - 37.5 without casters / 35.5 - 41.5 with casters |
Power Requirements |
N/A 230V, 20 Amps, 60 Hz, 1 phase |
Compressed Air Flow Rate |
N/A 1/2 C.F.M. |
Maximum Product Height |
N/A 10 (12 Optional) Inch |
Minimum Product Length |
N/A 5.5 Inch |
Maximum Product Length |
N/A 120+ Inch |
Conveyor Belt Width |
N/A 25 Inch |
Maximum Film Width - Folded |
N/A 30 Inch |
Maximum Film Width - Flat |
N/A 60 Inch |
Product Speed |
N/A Up to 75 packages/min |
Seal Jaw Width |
N/A 33 Inch |
|
N/A AC Motors and AC Variable Frequency Drives Belted Infeed - Random Product Feed Casters Custom Options EZ Load Compact Centerfolder Level Bottom Jaw Print Registration |
|
