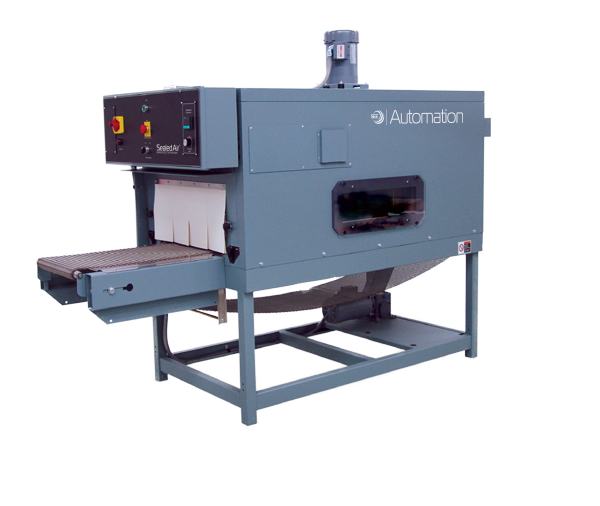

The Shanklin Model T-81 is an extended single-chamber shrink tunnel designed for high-speed, high-volume wrapping applications that handle irregular shapes or heat-absorptive surfaces. It features a 60-inch long chamber that boosts shrink capacity with fully adjustable air temperature, velocity, and conveyor speeds.
Brand |
N/A Shanklin |
Speed |
N/A 25 to 150 ft/min |
Tunnel Passage Height |
N/A 12 Inch |
Tunnel Passage Width |
N/A 28 Inch |
Tunnel Passage Length |
N/A 60 Inch |
Tunnel Size Height |
N/A 68.5 Inch |
Tunnel Size Width |
N/A 42 Inch |
Tunnel Size Length |
N/A 99 Inch |
Pairs With |
N/A Shanklin Triumph 2 Wrapper |
