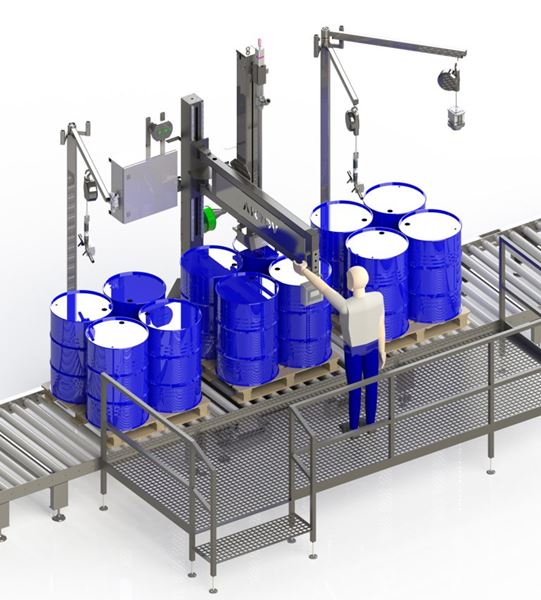

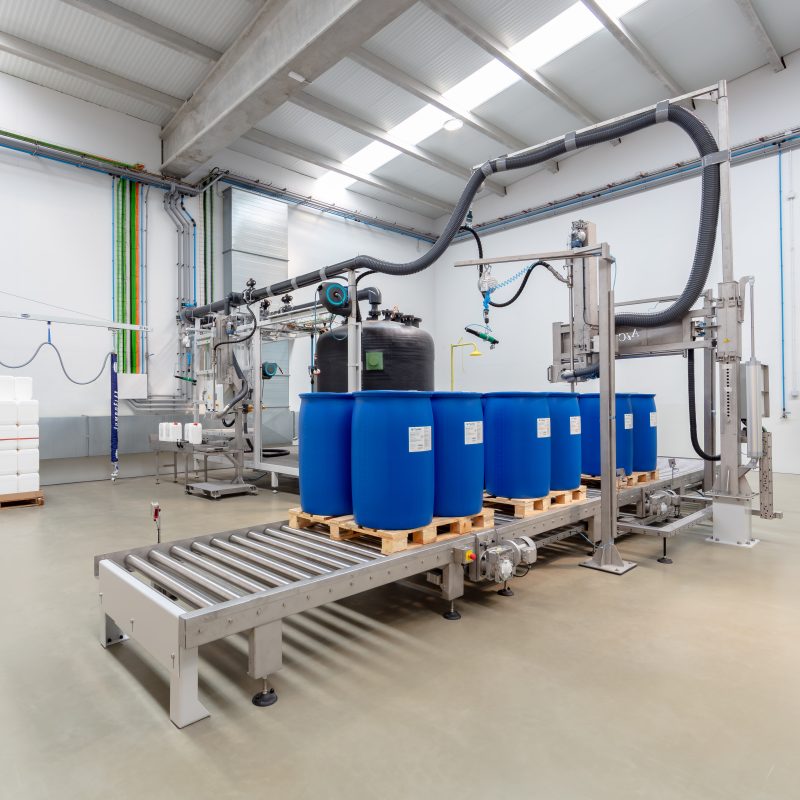

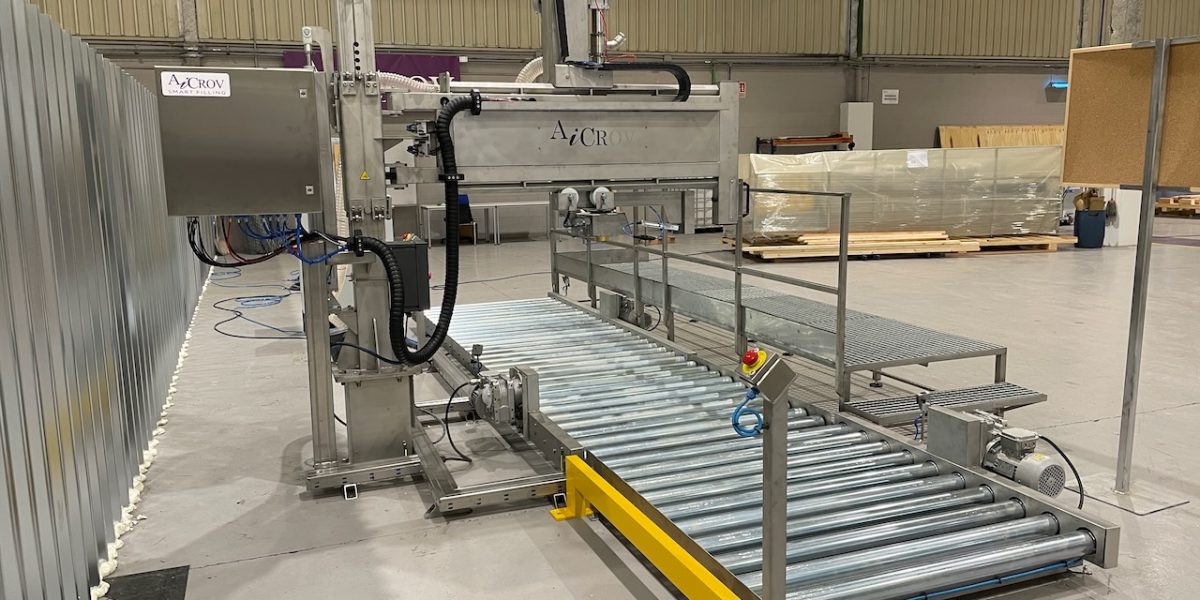

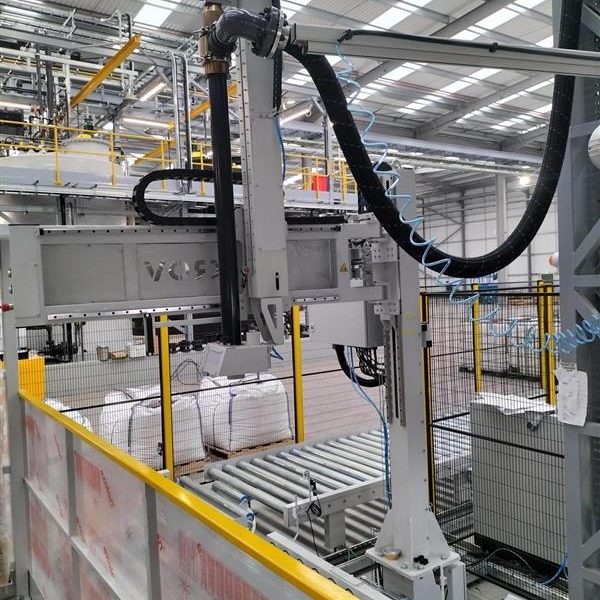

The Drum and IBC filling machine conveyor line SP2 is a versatile and semiautomatic weight filling equipment. It is suitable for filling liquid and viscous products directly on pallet in a wide range of containers. In fact, this solution allows you to fill canisters, pails, totes, drums and IBCs directly on pallet.

The Drum and IBC filling machine conveyor line SP2 is the perfect match for small-scale productions and frequent format or product changes. It's a flexible, cost-effective solution than can be used in a variety of applications.

Unit of Measure

N/A

Brand

 N/A AiCrov

Power Requirements

 N/A Electrical: 240V, 50-60Hz, <1Kw

Capacity Range

 N/A 10 to 1500 L

Approximate Nominal Productions

 N/A 65 drums/hour (220 liters) - 15 IBC/hour (1200 liters)

Base Height Range Of Adjustment

 N/A 550 mm servo adjustment

Weight Scale Resolution

 N/A ±50 g

Product Pump Control

 N/A 3 potential contacts for controlling an on-site pump or a pilot valve for gross/fine fill

Required Air Pressure

 N/A 6 bar

Work Temperature

 N/A -10°C a +45 °C

Product Temperature

 N/A 0°C a +130 °C

Product Connection

 N/A 1 ½ inch male camlock

Approximate Weight

 N/A 900 kg

N/A

  • Set up the filling recipe.
  • Adjust the height of the filling arm.
  • Place pallets with empty containers on the input conveyor.
  • Wait for the pallet to arrive automatically to the filling machine.
  • Press the “release axes” button and position the dispenser on the container bunghole to be filled.
  • Press the “fill” button. The dispenser will lower, fill and return to its position.
  • Carry out points 5 and 6 as many times as there are containers on the pallet.
  • Press the “evacuate pallet” button.
  • The pallet will move out of the machine.
  • Return to point 4.
  • Remove the pallets with full containers from the exit conveyor.

N/A

  • Gashood with anti-drip system
  • Product hose support system
  • PID controller filling algorithm
  • Double filling weight scale
  • Overfill detection
  • Filling history management
  • CIP cleaning system
  • Product pump control
  • Frontal protection
  • Dosing lances support rack
  • Dosing lance number control
  • Electrostatic discharge control
  • Flushing system
  • Corporate ERP integration
  • Packaging recipes
  • Additional weight scale for cans

N/A

Our liquid filling machines are designed to offer versatile and customizable filling modes, allowing you to adjust the system according to both the type of liquid product and the specific environment. Depending on your needs, our machines can operate with a range of filling methods, including:

Below surface filling mode

This filling mode is suitable for liquids that have the tendency to foam, are flammable, explosive, etc.

Under bunghole filling mode

This filling mode is suitable for filling products that are non-foaming, non-flammable, non-explosive, as well as those presenting high density or viscosity.

Over bunghole filling mode

This filling mode is suitable for filling highly viscous, non-foaming products, such as greases, paints, and other thick products. It is used for containers that lack a bunghole.
