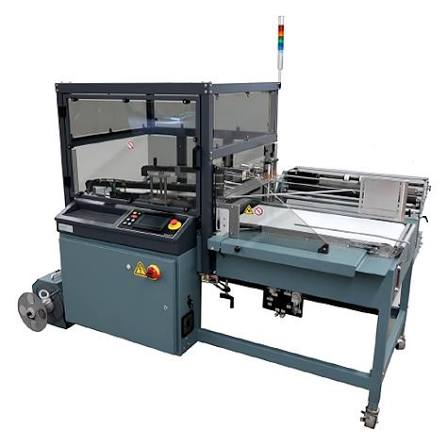

The Shanklin® Models A-26i and A-26i DA are compact, automated intuitive l-sealers designed for high-speed shrink wrapping up to 35 packages per minute. They feature an intuitive picture-based HMI touchscreen interface, a 15" x 21" seal area, and automatic length compensation, with the "DA" variant denoting a digital/drive-specific configuration.

Unit of Measure

Brand

 N/A Shanklin

Compressed Air Pressure

 N/A 60 psi

Conveyor Height

 N/A Adjustable 31.5 inches - 37.5 inches without casters / 35.5 inches - 41.5 inches with casters

Power Requirements

 N/A 230V, 15 Amps, 60 Hz, 1 phase & other voltage options are available

Compressed Air Flow Rate

 N/A 0.5 C.F.M.

Maximum Product Height

 N/A 5.5 Inch

Minimum Product Length

 N/A 4 inches standard / 1.5 inches with optional closing conveyor

Maximum Product Length

 N/A 20 Inch

Conveyor Belt Width

 N/A 14.5 Inch

Maximum Film Width - Folded

 N/A 24 Inch

Maximum Film Width - Flat

 N/A 42 Inch

Product Speed

 N/A Up to 35 packages/min

Seal Area Width

 N/A 15 Inch

Seal Area Length

 N/A 21 Inch

Longitudinal and Transverse Seal

 N/A Wide Fin Hot Knife

N/A Adjustable Flight Bar Infeed Conveyor Adjustable Flight Lug Infeed Conveyor Casters Closing Discharge Conveyor Custom Options Dual Infeed Eyes Dual Roll Compact Centerfolder EZ Film Thread Infeed Table EZ Load Compact Centerfolder Large Capacity Selvage Winder Print Registration Product Separating Infeed Conveyor Stainless Steel Removable Infeed

N/A

  • Emergency stop button instantly stops all machine functions until manually reset
  • A transparent door, interlocked electrically with dual monitored safety circuit, covers the sealing area; door allows full access to the system when open
  • Tamper-resistant controls
  • Low voltage sensors and actuators
  • Film clamp proximity sensors ensure safe sealing arm jaw closure
  • UL certified electrical chassis
